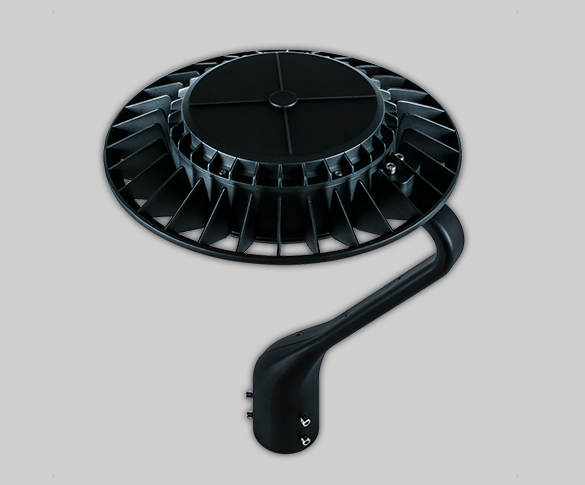

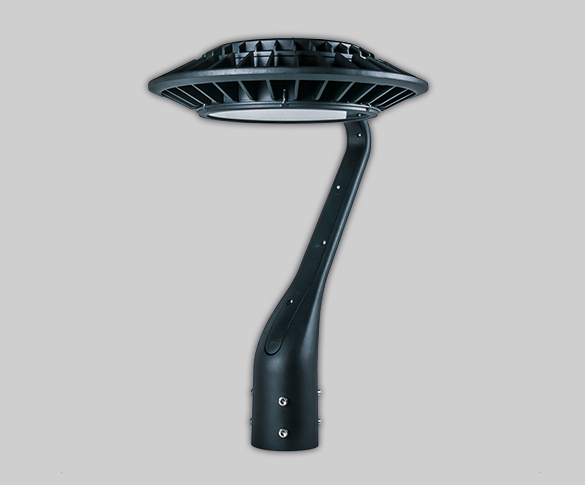

LED Garden Light
RL-AL-030W-B3-S1-D-YY
RL-AL-050W-B3-S1-D-YY
RL-AL-070W-B3-S1-D-YY
RL-AL-100W-B3-M2-D-YY
Model Number |
RL-AL-030W-B3-S1-D-YY | RL-AL-050W-B3-S1-D-YY | RL-AL-070W-B3-S1-D-YY |
 |
|
|
|
Model Profile |
Remarks: “YY” in model name can be “SW”, “WW”, “NW”, “DW” or “CW” denotes LED color temperature or color of LED.. |
||
>>Performance |
|||
| Data Sheet | Download | Download | Download |
| Nominal Power | 30W | 50W | 70W |
| Delivered Lumens (lm) | 3600~3900 lm | 6000~6500 lm | 8400~9100 lm |
| Efficacy (lm/W) | 120~130 lm/W | 120~130 lm/W | 120~130 lm/W |
| Color Rendering Index (CRI) | >70 | >70 | >70 |
| Color Temperature (CCT) | 3000K/4000K/5000K/5700K | 3000K/4000K/5000K/5700K | 3000K/4000K/5000K/5700K |
| Equivalent Wattage | 50~80W MH/HPS | 100~150 MH/HPS | 150~250W MH/HPS |
| Power Factor | 0.98 | 0.99 | 0.98 |
>>Dimming Control |
|||
| Dimming compatible | optional （typical： no dim） | optional （typical： no dim） | optional (typical: no dim) |
>>Dimensions |
|||
| Product Weight (lbs.) | 13.1 | 13.23 | 13.45 |
| Product Height (Inches) | 21 | 21 | 21 |
| Product Length (Inches) | 15 | 15< | 15< |
| Product Width (Inches) | 15 | 15 | 15 |
>>Longevity |
|||
| L70 Life (Hours) | 60400 hours | 60400 hours | 60400 hours |
| Warranty (Years) | 5 years | 5 years | 5 years |
>>Validations and Downloads |
|||
| LM-79 | please contact sales for the LM79 | please contact sales for the LM79 | please contact sales for the LM79 |
| LM-80 | Yes | Yes | Yes |
| ETL/CETL | Yes | Yes | Yes |
| CE/RoHS | Yes | Yes | Yes |
| ies | please contact sales for the IES | please contact sales for the IES | please contact sales for the IES |
>>Qualifications |
|||
| DLC | |||
| FCC | Yes | Yes | Yes |
| LED Lighting Facts® | N/A | N/A | N/A |
Model Number |
RL-AL-100W-B3-M2-D-YY | ||
 |
|||
Model Profile |
|
||
>>Performance |
|||
| Data Sheet | Download | ||
| Nominal Power | 100W | ||
| Delivered Lumens (lm) | 12,000~13,000 lm | ||
| Efficacy (lm/W) | 120~130 lm/W | ||
| Color Rendering Index (CRI) | >70 | ||
| Color Temperature (CCT) | 3000K/4000K/5000K/5700K | ||
| Equivalent Wattage | 250~400W MH/HPS | ||
| Power Factor | 0.98 | ||
>>Dimming Control |
|||
| Dimming compatible | N/A | ||
>>Dimensions |
|||
| Product Weight (lbs.) | 13.56 | ||
| Product Height (Inches) | 21 | ||
| Product Length (Inches) | 15 | ||
| Product Width (Inches) | 15 | ||
>>Longevity |
|||
| L70 Life (Hours) | 60400 hours | ||
| Warranty (Years) | 5 years | ||
>>Validations and Downloads |
|||
| LM-79 | please contact sales for the LM79 | ||
| LM-80 | Yes | ||
| ETL/CETL | Yes | ||
| CE/RoHS | Yes | ||
| ies | please contact sales for the IES | ||
>>Qualifications |
|||
| DesignLights Consortium® | N/A | ||
| FCC | Yes | ||
| LED Lighting Facts® | Download | ||
1. Uniform color consistency
Engineered with proprietary binned LM-80-rated LEDs chips, which provide uniform color consistency

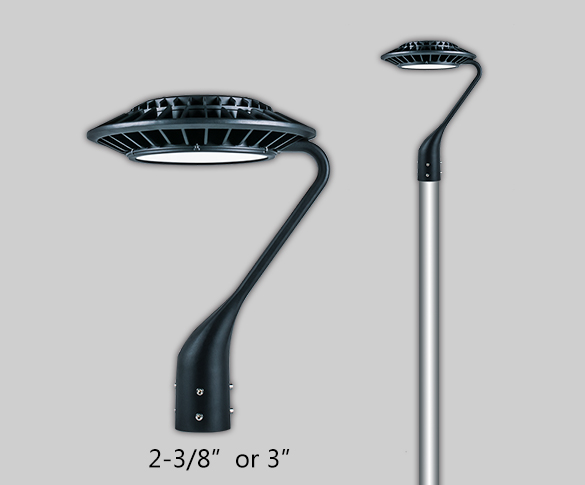

2. Multiple mounting options
Multiple knockouts for mounting convenience, and can mount to recessed outlet boxes or directly to surfaces
3. Internal aluminum heat sink
Temperature control aluminum heat sink dissipates heat and ensures thermal management created by LEDs and extended life
4. 60,600 hour life
60,600 hour life is more than 20.7years operating 8 hours a day, based on L70 standards
| L70 Lifetime | 69600 hours |
| 3 hours/day* | 55.3 years |
| 6 hours/day* | 27.7 years |
| 9 hours/day* | 18.4 years |
| 12 hours/day* | 13.8 years |
| 24 hours/day* | 6.9 years |
| 365 days/year |
5. High-quality shatter-resistant borosilicate lens
Constructed with borosilicate shatter-resistant glass
6. Durable housing
Constructed of one-piece rust and corrosion proof heavy-duty cast aluminum housing that is polyester powder coated for long durability and sealed to be free of dirt and insects
7. Universal voltage
Operate on universal voltage system with self contained driver meets UL 1310 UL 48 Class2
8. Environmentally friendly
Constructed without mercury and operates without emitting IR or UV radiation
9. Building control compatible
Dusk-to-dawn and occupancy sensor compatible additional energy savings and reduced utility costs
| Accessories |
| Options |
|
- Dimensions
| optional （typical： no dim） |
