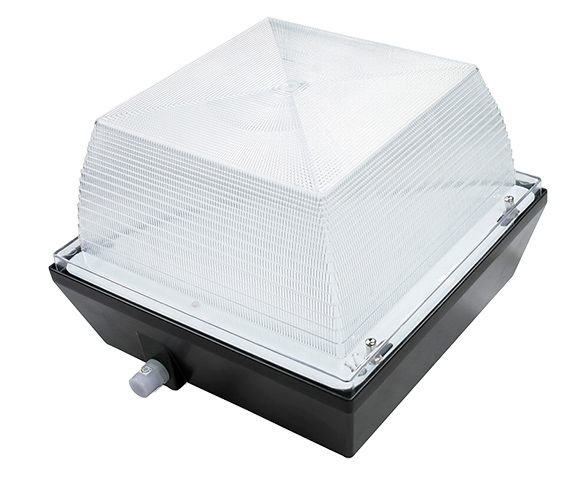

LED Garge Canopy Light
RL-CN-40W-A: 100-277Vac
RL-CN-040W-A-LV-D-YY: 100-277Vac
RL-CN-60W-A: 100-277Vac
RL-CN-060W-A-LV-D-YY: 100-277Vac
Model Number (ETL & DLC) |
RL-CN-40W-A | RL-CN-040W-A-LV-D-YY | RL-CN-60W-A |
 |
|
|
|
Model Profile |
“YY” in model name can be “SW”, “WW”, “NW”, “DW” or “CW” denotes LED color temperature or color of LED. |
||
>>Performance |
|||
| Data Sheet | Download | Download | Download |
| Input Watts | 40W | 39.48W | 60W |
| Delivered Lumens (lm) | 4675.3 lm | 3946 lm | 5927.4 lm |
| Efficacy (lm/W) | 114.42 lm/W | 99.95 lm/W | 105.28 lm/W |
| Color Rendering Index (CRI) | >70 | >70 | >70 |
| Color Temperature (CCT) | 5821 K | 5521 K | 5977 K |
| Equivalent Wattage | 150W MH | 150W MH | 250W MH |
| Power Factor | 0.9952 | 0.9952 | 0.9965 |
| Oper. Voltage | 100-277Vac | 100-277Vac | 100-277Vac |
>>Dimensions |
|||
| N.W | 3.1KG | 3.1KG | 3.1KG |
| G.W | 3.7KG | 3.7KG | 3.7KG |
| 20GP | 630PCS | 630PCS | 630PCS |
| 40GP | 1344PCS | 1344PCS | 1344PCS |
| 40HQ | 1568PCS | 1568PCS | 1568PCS |
>>Longevity |
|||
| L70 Life (Hours) | 36000 hours | 51400 hours | 36000 hours |
| Warranty (Years) | 5 years | 5 years | 5 years |
Model Number (ETL & DLC) |
RL-CN-060W-A-LV-D-YY | ||
|
|
|||
Model Profile |
“YY” in model name can be “SW”, “WW”, “NW”, “DW” or “CW” denotes LED color temperature or color of LED. |
||
>>Performance |
|||
| Data Sheet | Download | ||
| Input Watts | 60.44W | ||
| Delivered Lumens (lm) | 5411.19 lm | ||
| Efficacy (lm/W) | 89.53 lm/W | ||
| Color Rendering Index (CRI) | >70 | ||
| Color Temperature (CCT) | 5373 K | ||
| Equivalent Wattage | 250W MH | ||
| Power Factor | 0.9965 | ||
| Oper. Voltage | 100-277Vac | ||
>>Dimensions |
|||
| N.W | 3.1KG | ||
| G.W | 3.7KG | ||
| 20GP | 630PCS | ||
| 40GP | 1344PCS | ||
| 40HQ | 1568PCS | ||
>>Longevity |
|||
| L70 Life (Hours) | 51400 hours | ||
| Warranty (Years) | 5 years | ||
1. Uniform color consistency
Engineered with proprietary binned LM-80-rated LEDs chips, which provide uniform color consistency
2. Multiple mounting options
Multiple knockouts for mounting convenience, and can mount to recessed outlet boxes or directly to surfaces
3. Internal aluminum heat sink
Temperature control aluminum heat sink dissipates heat and ensures thermal management created by LEDs and extended life
4. 36000 hour life
Life is more than 20.8 years operating 8 hours a day, based on L70 standards
| L70 Lifetime | 36000 hours | 51400 hours |
| 3 hours/day* | 32.9 years | 46.9 years |
| 6 hours/day* | 16.5 years | 23.5 years |
| 9 hours/day* | 10.9 years | 15.6 years |
| 12 hours/day* | 8.2 years | 11.8 years |
| 24 hours/day* | 4.1 years | 5.9 years |
| 365 days/year |
5. High-quality shatter-resistant borosilicate lens
Constructed with borosilicate shatter-resistant glass
6. Durable housing
Constructed of one-piece rust and corrosion proof heavy-duty cast aluminum housing that is polyester powder coated for long durability and sealed to be free of dirt and insects
7. Universal voltage
Operate on universal voltage system with self contained driver meets UL 1310 UL 48 Class2
8. Environmentally friendly
Constructed without mercury and operates without emitting IR or UV radiation
9. Building control compatible
Dusk-to-dawn and occupancy sensor compatible additional energy savings and reduced utility costs
| Options |
Model:BX-TLGK-120PhotoCell Dusk to Dawn activates when the light level drops below 1.5 Fc and turns off when the level reaches 6 Fc, the PhotoCell option can be installed at the factory or in the field, depending upon customer needs, and backed by a 5-year limited product warranty. |
Model:BX-TLGK-277PhotoCell Dusk to Dawn activates when the light level drops below 1.5 Fc and turns off when the level reaches 6 Fc, the PhotoCell option can be installed at the factory or in the field, depending upon customer needs, and backed by a 5-year limited product warranty. |
- Model Number

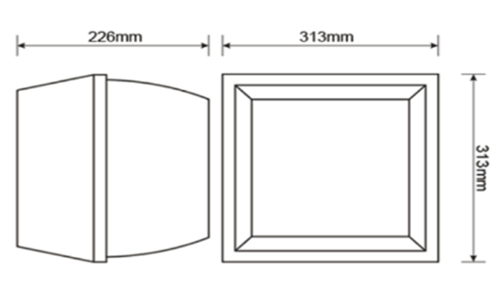

- Dimensions
- RL-CN-40W-A
- RL-CN-40W-B
- RL-CN-60W-A
- RL-CN-60W-B
- 36*36*28cm/CTN/PC
