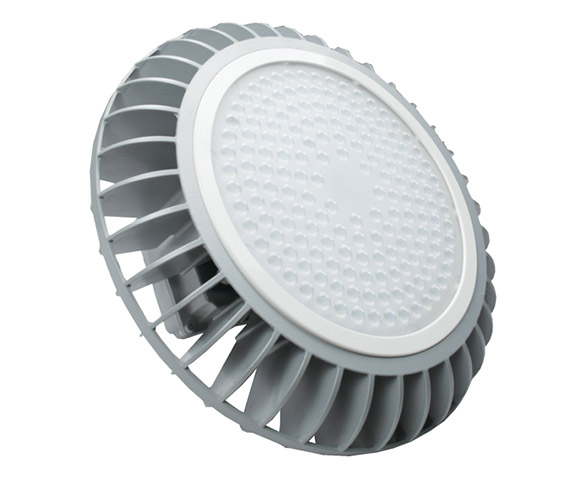

Type C LED Highbay

RL-HB-250W-LV-D-YY: 100-277Vac

Model Number

RL-HB-250W-LV-D-YY
  LED Type C LED Highbay

>>Performance

Data Sheet Download
Input Wattage 257
Delivered Lumens (lm) 27822 lm
Efficacy (lm/W) 108.26 lm/W
Color Rendering Index (CRI) 73.5
Color Temperature (CCT) 5629 K
Equivalent Wattage 1000W MH
Power Factor 0.9959

>>Dimming Control

Dimming compatible N/A

>>Dimensions

Product Weight (lbs.) 15KG
Product Height (Inches) 17.71 "
Product Length (Inches) 17.71 "
Product Width (Inches) 8.46 "

>>Longevity

L70 Life (Hours) 60600 hours
Warranty (Years) 5 years

>>Validations and Downloads

LM-79 please contact sales for the LM79
LM-80 Yes
ETL/CETL Yes
CE/ROHS Yes
ies please contact sales for the IES

>>Qualifications

DesignLights Consortium® N/A
FCC Yes
LED Lighting Facts® Download


1. Uniform color consistency

Engineered with proprietary binned LM-80-rated LEDs chips, which provide uniform color consistency

2. Multiple mounting options

Multiple knockouts for mounting convenience, and can mount to recessed outlet boxes or directly to surfaces

3. Internal aluminum heat sink

Temperature control aluminum heat sink dissipates heat and ensures thermal management created by LEDs and extended life

4. 60,600 hour life

60,600 hour life is more than 20.7 years operating 8 hours a day, based on L70 standards

L70 Lifetime 60600 hours
3 hours/day* 55.3 years
6 hours/day* 27.7 years
9 hours/day* 18.4 years
12 hours/day* 13.8 years
24 hours/day* 6.9 years
365 days/year

5. High-quality shatter-resistant borosilicate lens

Constructed with borosilicate shatter-resistant glass

6. Durable housing

Constructed of one-piece rust and corrosion proof heavy-duty cast aluminum housing that is polyester powder coated for long durability and sealed to be free of dirt and insects

7. Universal voltage

Operate on universal voltage system with self contained driver meets UL 1310 UL 48 Class2

8. Environmentally friendly

Constructed without mercury and operates without emitting IR or UV radiation

9. Building control compatible

Dusk-to-dawn and occupancy sensor compatible additional energy savings and reduced utility costs

Options
LED Type C LED Highbay

Model:BX-TLGK-120

PhotoCell Dusk to Dawn activates when the light level drops below 1.5 Fc and turns off when the level reaches 6 Fc, the PhotoCell option can be installed at the factory or in the field, depending upon customer needs, and backed by a 5-year limited product warranty.

LED Type C LED Highbay

Model:BX-TLGK-277

PhotoCell Dusk to Dawn activates when the light level drops below 1.5 Fc and turns off when the level reaches 6 Fc, the PhotoCell option can be installed at the factory or in the field, depending upon customer needs, and backed by a 5-year limited product warranty.
