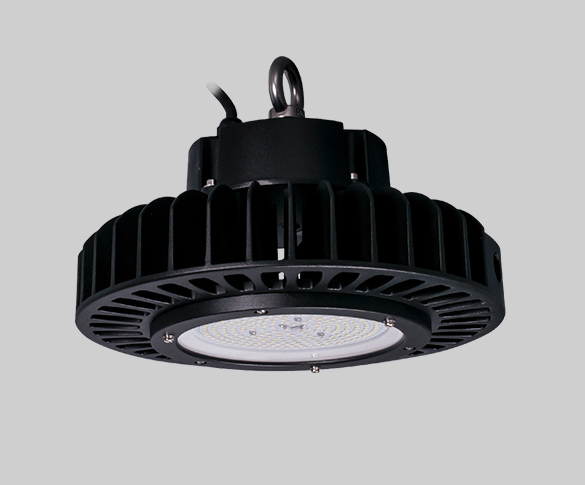

UFO LED Highbay
RL-HB-100W-LV-B-YY
RL-HB-150W-LV-B-YY
RL-HB-200W-LV-B-YY
RL-HB-250W-LV-B-YY
Model Number |
RL-HB-100W-LV-B-YY | RL-HB-150W-LV-B-YY | RL-HB-200W-LV-B-YY |
 |
|
|
|
Model Profile |
“XX” in model name can be “FL”, “AL”, “SB”, “ST” or “WP” denotes series code for commercial use. |
||
>>Performance |
|||
| Data Sheet | Download | Download | Download |
| Input Wattage | 100 | 150 | 200 |
| Delivered Lumens (lm) | 14500 lm | 21750 lm | 29000 lm |
| Efficacy (lm/W) | 135±10% lm/W | 135±10% lm/W | 135±10% lm/W |
| Color Rendering Index (CRI) | >70+ | >70+ | >70+ |
| Color Temperature (CCT) | 2700K-6500K | 2700K-6500K | 2700K-6500K |
| Equivalent Wattage | 150-200 W MH | 300-400 W MH | 400-500 W MH |
| Power Factor | >0.97 | ||
| Housing | Die Cast Aluminium | ||
| Beam Angle | 120° std. | ||
| Operation Temperature | -30~40°C | ||
>>Dimming Control |
|||
| Dimming compatible | no | ||
>>Longevity |
|||
| L70 Life (Hours) | 60600 hours | 60600 hours | 60600 hours |
| Warranty (Years) | 5 years | 5 years | 5 years |
>>Validations and Downloads |
|||
| LM-79 | please contact sales for the LM79 | please contact sales for the LM79 | please contact sales for the LM79 |
| LM-80 | Yes | Yes | Yes |
| ETL/cETL | Yes | Yes | Yes |
| CE/RoHS | Yes | Yes | Yes |
| ies | please contact sales for the IES | please contact sales for the IES | please contact sales for the IES |
>>Qualifications |
|||
| DesignLights Consortium® | N/A | N/A | N/A |
| FCC | Yes | Yes | Yes |
| LED Lighting Facts® | Download | Download | Download |
Model Number |
RL-HB-250W-LV-B-YY | ||
|
|
|||
Model Profile |
“XX” in model name can be “FL”, “AL”, “SB”, “ST” or “WP” denotes series code for commercial use. |
||
>>Performance |
|||
| Data Sheet | Download | ||
| Input Wattage | 250 | ||
| Delivered Lumens (lm) | 34800 lm | ||
| Efficacy (lm/W) | 135±10% lm/W | ||
| Color Rendering Index (CRI) | >70+ | > | |
| Color Temperature (CCT) | 2700K-6500K | ||
| Equivalent Wattage | 500-600 W MH | ||
| Power Factor | >0.97 | ||
| Housing | Die Cast Aluminium | ||
| Beam Angle | 120° std. | ||
| Operation Temperature | -30~40°C | ||
>>Dimming Control |
|||
| Dimming compatible | no | ||
>>Longevity |
|||
| L70 Life (Hours) | 60600 hours | ||
| Warranty (Years) | 5 years | ||
>>Validations and Downloads |
|||
| LM-79 | please contact sales for the LM79 | ||
| LM-80 | Yes | ||
| ETL/cETL | Yes | ||
| CE/RoHS | Yes | ||
| ies | please contact sales for the IES | ||
>>Qualifications |
|||
| DesignLights Consortium® | N/A | ||
| FCC | Yes | ||
| LED Lighting Facts® | Download | ||
1. Uniform color consistency
Engineered with proprietary binned LM-80-rated LEDs chips, which provide uniform color consistency
2. Multiple mounting options
Multiple knockouts for mounting convenience, and can mount to recessed outlet boxes or directly to surfaces

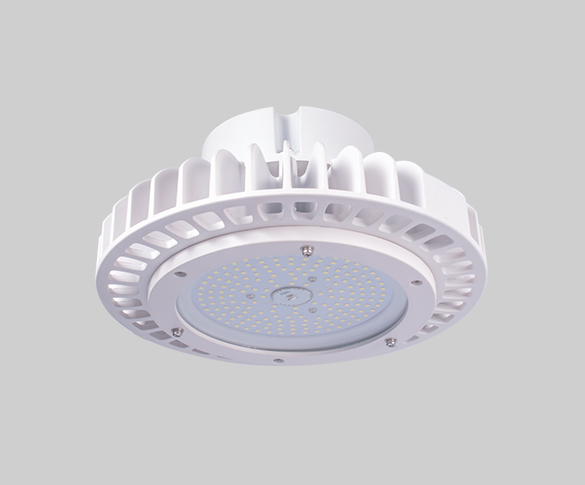

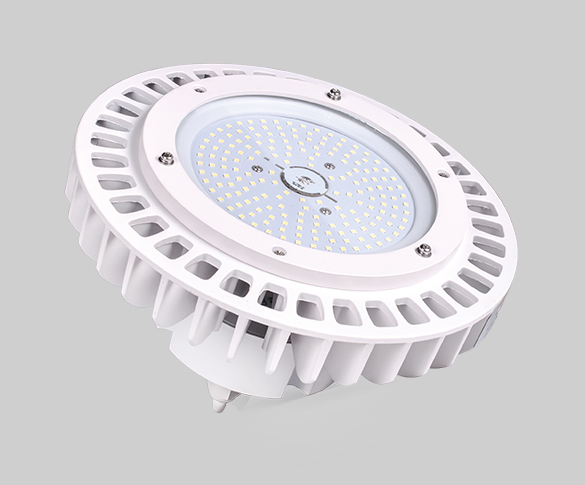

3. Internal aluminum heat sink
Temperature control aluminum heat sink dissipates heat and ensures thermal management created by LEDs and extended life
4. 69,600 hour life
60,600 hour life is more than 20.7 years operating 8 hours a day, based on L70 standards
| L70 Lifetime | 69600 hours |
| 3 hours/day* | 55.3 years |
| 6 hours/day* | 27.7 years |
| 9 hours/day* | 18.4 years |
| 12 hours/day* | 13.8 years |
| 24 hours/day* | 6.9 years |
| 365 days/year |

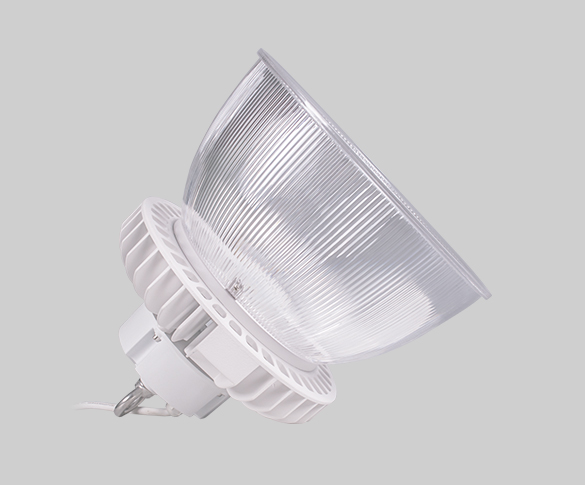

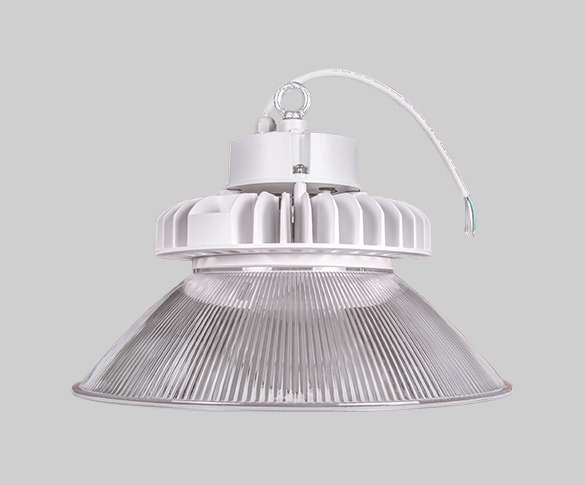

5. High-quality shatter-resistant borosilicate lens
Constructed with borosilicate shatter-resistant glass

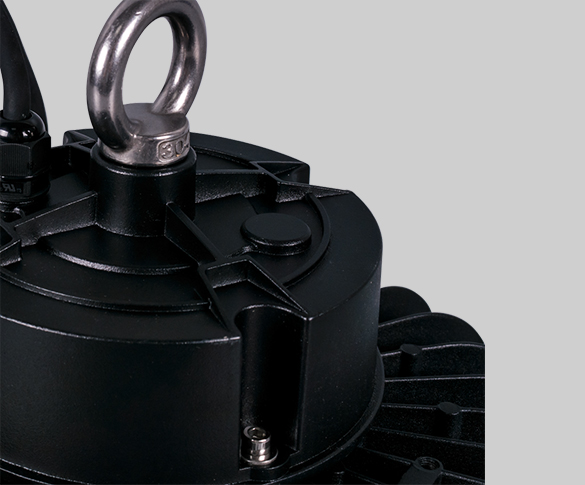

6. Durable housing
Constructed of one-piece rust and corrosion proof heavy-duty cast aluminum housing that is polyester powder coated for long durability and sealed to be free of dirt and insects
7. Universal voltage
Operate on universal voltage system with self contained driver meets UL 1310 UL 48 Class2
8. Environmentally friendly
Constructed without mercury and operates without emitting IR or UV radiation
9. Building control compatible
Dusk-to-dawn and occupancy sensor compatible additional energy savings and reduced utility costs
| Accessories |
Model:Slip Fitter |
Model:Swovel Bracket |
| Options |
Model:BX-TLGK-120PhotoCell Dusk to Dawn activates when the light level drops below 1.5 Fc and turns off when the level reaches 6 Fc, the PhotoCell option can be installed at the factory or in the field, depending upon customer needs, and backed by a 5-year limited product warranty. |
Model:BX-TLGK-277PhotoCell Dusk to Dawn activates when the light level drops below 1.5 Fc and turns off when the level reaches 6 Fc, the PhotoCell option can be installed at the factory or in the field, depending upon customer needs, and backed by a 5-year limited product warranty. |
- Model Number
- Dimensions
- RL-XX-80W-LV-C-D-YY
- RL-XX-100W-LV-C-D-YY
- RL-XX-120W-LV-C-D-YY
- RL-XX-150W-LV-C-D-YY
- 80-100W 1PC/BOX
- 120-150W 1PC/BOX
