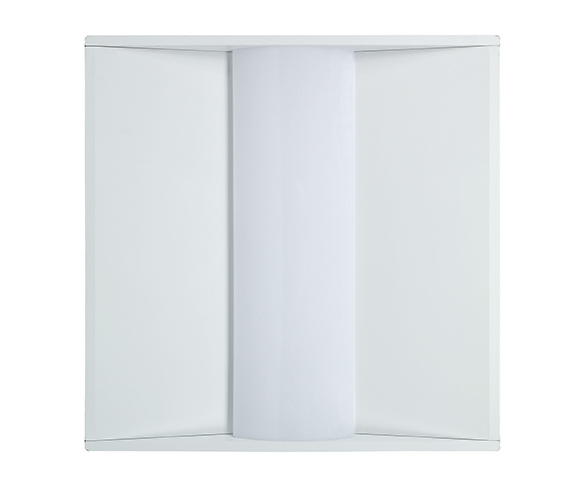

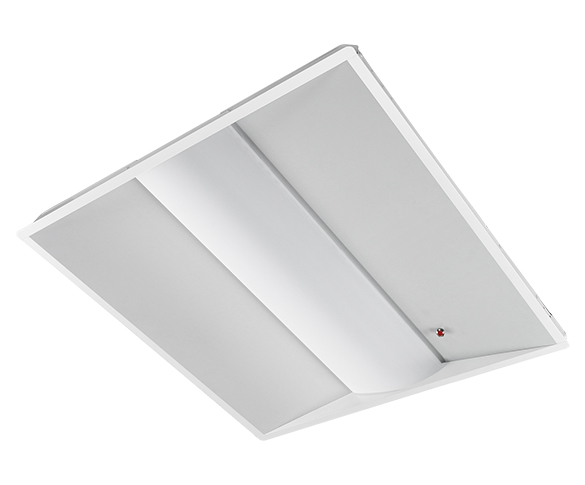

LED Troffer
RL-TR-025W-A-LV-D-YY: 100-277Vac
RL-TR-040W-A-LV-D-YY: 100-277Vac
RL-TR-035W-A-LV-D-YY: 100-277Vac
RL-TR-050W-A-LV-D-YY: 100-277Vac
Model Number |
RL-TR-025W-A-LV-D-YY | RL-TR-040W-A-LV-D-YY | RL-TR-035W-A-LV-D-YY |
 |
|
 |
|
Model Profile |
“YY” in model name can be “SW”, “WW”, “NW”, “DW” or “CW” denotes LED color temperature or color of LED. |
||
>>Performance |
|||
| Data Sheet | Download | Download | Download |
| Input Wattage | 25 | 40 | 35 |
| Delivered Lumens (lm) | 3125 lm | 5000 lm | 4375 lm |
| Efficacy (lm/W) | 125 lm/W | 125 lm/W | 125 lm/W |
| Color Rendering Index (CRI) | >70 | >70 | >70 |
| Color Temperature (CCT) | 3000-5000 K | 3000-5000 K | 3000-5000 K |
| Equivalent Wattage | 50W MH | 80W MH | 70W MH |
| Power Factor | 0.9 | 0.9 | 0.9 |
>>Dimming Control |
|||
| Dimming compatible | N/A | N/A | N/A |

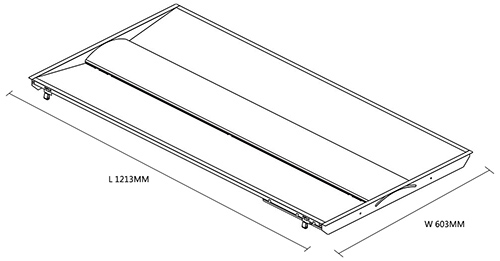

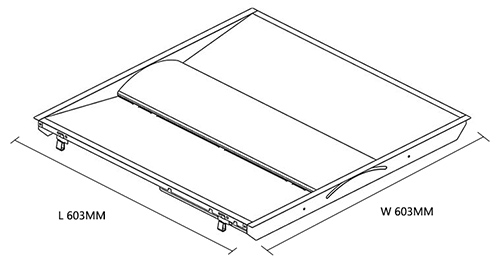

>>Dimensions |
|||
| Product Weight (lbs.) | |||
| Product Height | 603MM | 603MM | 603MM |
| Product Length | 603MM | 603MM | 1213MM |
| Product Width | 50MM | 50MM | 50MM |
>>Longevity |
|||
| L70 Life (Hours) | 54000 hours | 54000 hours | 60400 hours |
| Warranty (Years) | 5 years | 5 years | 5 years |
>>Validations and Downloads |
|||
| LM-79 | please contact sales for the LM79 | please contact sales for the LM79 | please contact sales for the LM79 |
| LM-80 | Yes | Yes | Yes |
| ETL/CETL | Yes | Yes | Yes |
| DLC | Yes | Yes | Yes |
| ies | please contact sales for the IES | please contact sales for the IES | please contact sales for the IES |
>>Qualifications |
|||
| DesignLights Consortium® | N/A | N/A | N/A |
| FCC | Yes | Yes | Yes |
| LED Lighting Facts® | Download | Download | Download |
Model Number |
RL-TR-050W-A-LV-D-YY | ||
|
|
|||
Model Profile |
“XX” in model name can be “FL”, “AL”, “SB”, “ST” or “WP” denotes series code for commercial use. |
||
>>Performance |
|||
| Data Sheet | Download | ||
| Input Wattage | 50 | ||
| Delivered Lumens (lm) | 6250 lm | ||
| Efficacy (lm/W) | 125 lm/W | ||
| Color Rendering Index (CRI) | >70 | ||
| Color Temperature (CCT) | 3000-5000 K | ||
| Equivalent Wattage | 100W MH | ||
| Power Factor | 0.9 | ||
>>Dimming Control |
|||
| Dimming compatible | N/A | ||
>>Dimensions |
|||
| Product Weight (lbs.) | |||
| Product Height | 603MM | ||
| Product Length | 1213MM | ||
| Product Width | 50MM | ||
>>Longevity |
|||
| L70 Life (Hours) | 54000 hours | ||
| Warranty (Years) | 5 years | ||
>>Validations and Downloads |
|||
| LM-79 | please contact sales for the LM79 | ||
| LM-80 | Yes | ||
| ETL/CETL | Yes | ||
| DLC | N/A | ||
| ies | please contact sales for the IES | ||
>>Qualifications |
|||
| DesignLights Consortium® | N/A | ||
| FCC | Yes | ||
| LED Lighting Facts® | Download | ||
1. Uniform color consistency
Engineered with proprietary binned LM-80-rated LEDs chips, which provide uniform color consistency
2. Multiple mounting options
Multiple knockouts for mounting convenience, and can mount to recessed outlet boxes or directly to surfaces
3. Internal aluminum heat sink
Temperature control aluminum heat sink dissipates heat and ensures thermal management created by LEDs and extended life
4. 60,600 hour life
60,600 hour life is more than 20.7years operating 8 hours a day, based on L70 standards
| L70 Lifetime | 69600 hours |
| 3 hours/day* | 55.3 years |
| 6 hours/day* | 27.7 years |
| 9 hours/day* | 18.4 years |
| 12 hours/day* | 13.8 years |
| 24 hours/day* | 6.9 years |
| 365 days/year |
5. High-quality shatter-resistant borosilicate lens
Constructed with borosilicate shatter-resistant glass
6. Durable housing
Constructed of one-piece rust and corrosion proof heavy-duty cast aluminum housing that is polyester powder coated for long durability and sealed to be free of dirt and insects
7. Universal voltage
Operate on universal voltage system with self contained driver meets UL 1310 UL 48 Class2
8. Environmentally friendly
Constructed without mercury and operates without emitting IR or UV radiation
9. Dimmable control
0-10V Dimmable with different sensors and Enmergency Kit
| Options |
 Enmergency Lighting Kit
* working 90 minuts Min after power off
* Working with battery packs LiFePO4 6.4V 1500MAH
* DC constant Current Output at Emergency Mode
* Over-Discharge Protection
* Additional Relay that can control LED Driver
* Our Prouduct complied with UL924 Standards.
* size: 172*90*25MM
|
|
